Durable Cast Iron Detectable Warning Tactile Surfaces
Whether you’re contracting with a local government for work on public rights-of-way or designing an accessible ADA flooring for your private business, ADA Solutions, Inc. has the industry-leading tile products to meet your needs. Every product is thoroughly tested for slip resistance, strength, detectability, weather resistance, and more before it is ever approved for sale.

At ADA Solutions, Inc., we design our products to enhance public access and mobility for visually impaired persons. As the leading manufacturer in our industry, we have amassed a breadth of knowledge on how best to aid the visually impaired community. We have been actively involved with evolving global initiatives to promote barrier free urban development and greater public access for all pedestrians.

  • ADA Solutions, Inc. – Cast Iron Tactile Systems

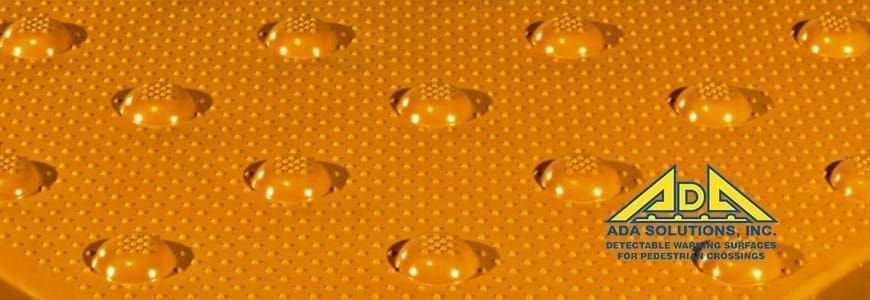

    • Raised Truncated domes with a diameter of nominal 0.9” and height of nominal 0.2”
    • Center-to-cent spacing of 1.6” minimum and 2.4” maximum
    • 0.38” nominal thickness
    • Slip resistant textured surface
    • Natural finish meets color contrast requirements
    • Eligible to earn LEED® points in the materials and resources category
  • ADA Solutions, Inc. – Cast-In-Place Replaceable Tactile Panels

    • Body Thickness is 0.25” not including truncated domes (10% greater than the closest alternative).
    • Panel Weight is 2.25 lbs. per SF (12% more material than the closest alternative).
    • Four-Sided Embedment Flange is 0.75” deep and 1.02” thick.
    • Utilizes time tested and proven 0.5” x 1.5” Corrosion Resistant Concrete Inserts with 6,200 psi. of pulldown strength per insert.
    • Inserts are housed in a 0.5” recessed fixture on the back side of the panel.
    • This insures 2” of embedment depth into the concrete (50% deeper than the closest alternative).
    • The Replaceable unit is secured into the anchor with a 0.5” x 1.5” heavy duty metal bolt located 0.25” into the body of the panel.
    • The bolt head is fully covered and protected by structurally fit caps. This is a far superior to the open faced, fully exposed lightweight all-purpose screws utilized by all other alternative systems.

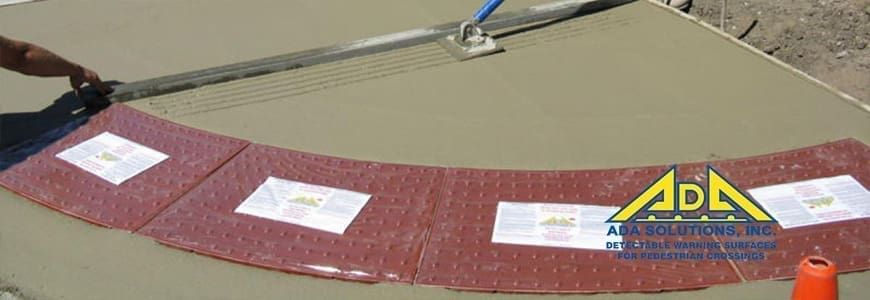

  • ADA Solutions, Inc. – Cast-In-Place Tactile Panels

    • For use in new curb ramps or new construction
    • Pressed into place in freshly poured concrete
    • Cast-In-Place Tiles have a 1/4″ nominal thickness and feature embedment ribs 3″ on center through entire length of tile
    • Plastic sheeting protection covers entire surface of Cast-In-Place Tile
    • Standard sizes: 24″ x 36″, 24″ x 48″, 24″ x 60″, 36″ x 48″, and 36″ x 60″

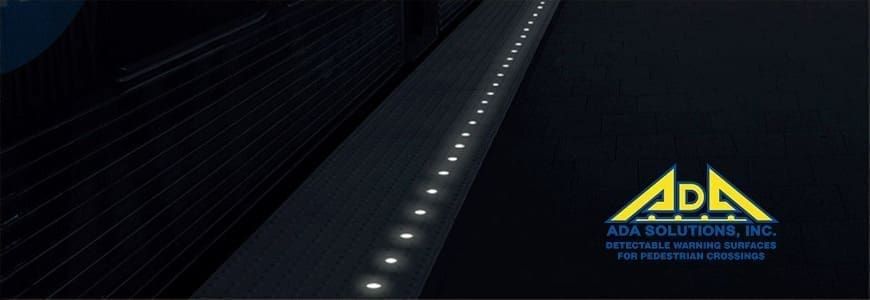

  • ADA Solutions, Inc. – Glow Dome Photoluminescent Systems



    • Not dependent on any power source – charged by an ambient light
    • Provides pedestrians with emergency visual cues
    • Integrates performance, function, and appearance to provide pedestrians with a distinct visual cue
    • Available in replaceable, retrofit transit, and paver tiles
  • ADA Solutions, Inc. – Radius Tactile Systems

    • Ideally engineered for applications where Radius conditions are 6’ – 22’.
    • No Cutting required where Radius = 11’ -13’
    • Pre Scored for 10’, 15’ and 20’ Radius
    • Cut to fit within minutes
  • ADA Solutions, Inc. – Replaceable Graphic Tile Systems

    Following our well established tradition of innovative products, ADA Solutions, Inc., introduced our graphic tile system – fully customizable tiles with your message, colors, fonts, and even reflective ink options.



    • Photographic quality, 4-color artwork available in 5 different sizes
    • Meets or exceeds all federal and state accessibility standards
    • Message can be placed on one tile or sequential tiles
    • Easily mapped and managed
    • Message can be added in minutes
  • ADA Solutions, Inc. – Surfaced Applied Detectable Warning System

    The perfect solution for retrofitting existing concrete surface or new construction, our surface applied panels are constructed of an exterior grade, fiberglass polymer composite material.



    • For use in Retrofit applications
    • Large perimeter beveled edges for smooth transition
    • Secured with color-matched fasteners and structural adhesive
    • Surface applied tiles are 1/8″ thick with beveled edges
    • Standard sizes: 24″ x 36″, 24″ x 48″, 24″ x 60″, 36″ x 48″, and 36″ x 60″
  • ADA Solutions, Inc. – Way-Finding Surface Products

    ADA Solutions, Inc., has set the industry standard for way-finding surfaces for over two decades. We understand and cater to the specific need for Directional Bar and Guide Surface Tiles to guide pedestrians across roadways and all walking surfaces.  These way-finding surface tiles are used for both new and existing concrete substrates.

    All Tactile Warning System tiles manufactured by ADA Solutions, Inc., are designed to be installed on a concrete substrate. We do not recommend installing any of our products into asphalt, nor do we warranty such installations. Please contact us directly and one of our knowledgeable sales staff would be happy to explain an alternate solution.
