ADA Solutions, Inc. – Cast-In-Place Replaceable Tactile Panels

ADA Solutions, Inc. – Cast-In-Place Replaceable Tactile Panels

  • Body Thickness is 0.25” not including truncated domes (10% greater than the closest alternative).
  • Panel Weight is 2.25 lbs. per SF (12% more material than the closest alternative).
  • Four-Sided Embedment Flange is 0.75” deep and 1.02” thick.
  • Utilizes time tested and proven 0.5” x 1.5” Corrosion Resistant Concrete Inserts with 6,200 psi. of pulldown strength per insert.
  • Inserts are housed in a 0.5” recessed fixture on the back side of the panel.
  • This insures 2” of embedment depth into the concrete (50% deeper than the closest alternative).
  • The Replaceable unit is secured into the anchor with a 0.5” x 1.5” heavy duty metal bolt located 0.25” into the body of the panel.
  • The bolt head is fully covered and protected by structurally fit caps. This is a far superior to the open faced, fully exposed lightweight all-purpose screws utilized by all other alternative systems.

Compare
  • Description

Description

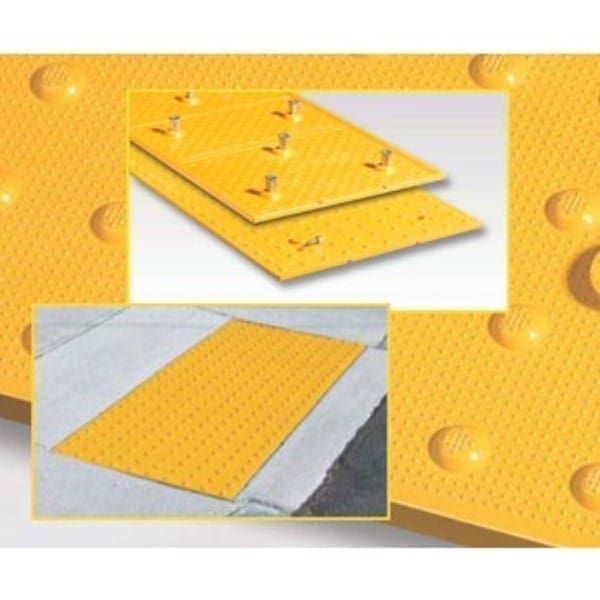

ADA Solutions, Inc., introduced this game-changing replaceable system to the market in 2006. ADA Solutions, Inc., has installed 18,000,000 square feet of our revolutionary Cast-in-Place Replaceable panels. The Cast-in-Place panel is delivered pre-assembled with an extra heavy duty anchoring system, specifically designed for easy insertion and embedment into fresh concrete. Our Replaceable system is far superior to any alternative on the market.



  • Body Thickness is 0.25” not including truncated domes (10% greater than the closest alternative).
  • Panel Weight is 2.25 lbs. per SF (12% more material than the closest alternative).
  • Four-Sided Embedment Flange is 0.75” deep and 1.02” thick.
  • Utilizes time tested and proven 0.5” x 1.5” Corrosion Resistant Concrete Inserts with 6,200 psi. of pulldown strength per insert.
  • Inserts are housed in a 0.5” recessed fixture on the back side of the panel.
  • This insures 2” of embedment depth into the concrete (50% deeper than the closest alternative).
  • The Replaceable unit is secured into the anchor with a 0.5” x 1.5” heavy duty metal bolt located 0.25” into the body of the panel.
  • The bolt head is fully covered and protected by structurally fit caps. This is a far superior to the open faced, fully exposed lightweight all-purpose screws utilized by all other alternative systems.
